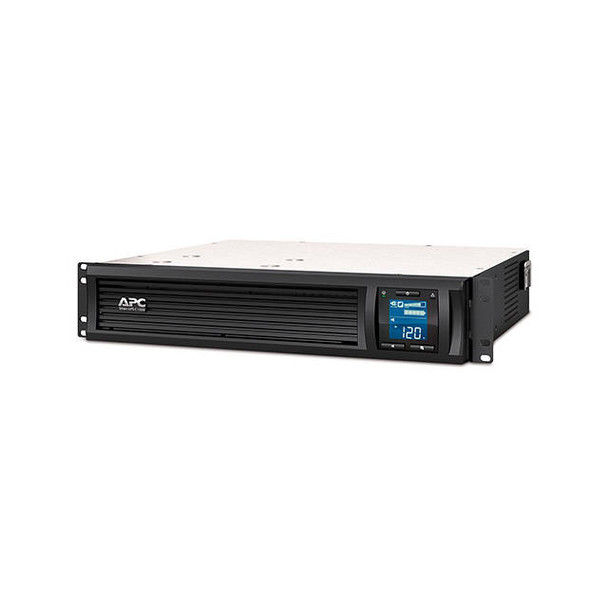

APC SMART-UPS SMC1500-2UC 6-Outlet 900W/1440VA 120V 2U Rackmount LCD UPS System w/ SmartConnect

Specifications

• Mfr Part Number: SMC1500-2UC
• Output
  • Output Power Capacity: 900Watts / 1.44 kVA
  • Max Configurable Power: 900Watts / 1.44 kVA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 110, 127
  • Topology: Line Interactive
  • Waveform type: Sine wave
  • Output Connections: 6x NEMA 5-15R (Battery Backup)
  • Transfer Time: 6ms - typical, 10ms - maximum
• Input
  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 8ft (2.44meters)
  • Input voltage range for main operations: 93 - 130V
  • Input voltage adjustable range for mains operation: 85 - 136V
  • Number of Power Cords: 1
  • Other Input Voltages: 110, 127
• Batteries & Runtime
  • Battery Type: Maintenance-free sealed lead-acid battery with suspended electrolyte; leakproof
  • Typical recharge time: 3 hours
  • Replacement Battery: APCRBC132
  • RBC Quantity: 1
• Communications & Management
  • Interface Port(s): USB
  • Control Panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
• Surge Protection and Filtering
  • Surge Energy Rating: 680 Joules
  • Filtering: Full time multi-pole noise filtering; 0.3% IEEE surge let-through; Zero clamping response time; Meets UL 1449
• Audible noise at 1 meter from surface of unit: 45.0 dBA
• Online Thermal Dissipation: 225.0 BTU/hr
• Approvals: CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
• Rack Height: 2U
• Color: Black
• Dimension (WxDxH): 17.00 x 18.78 x 3.39 inch / 432.0 x 477.0 x 86.0 mm
• Weight: 55.78 lbs / 25.3 kg
