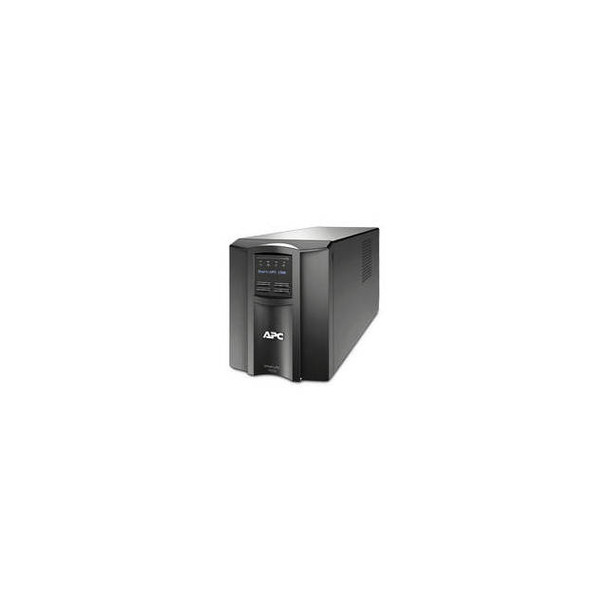

APC Smart-UPS SMT1500C 8-Outlet 1000W/1440VA 120V LCD UPS System w/ SmartConnect

Specifications

• Mfr Part Number: SMT1500C
• Output:
  • Output Power Capacity: 1.0 KWatts / 1.44 kVA
  • Max Configurable Power: 1.0 KWatts / 1.44 kVA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 110,127
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 8x NEMA 5-15R (Battery Backup)
  • Transfer Time：6ms typical; 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/- 3Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 6ft (1.83 meters)
  • Input voltage range for main operations: 82 ~ 144 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
  • Number of Power Cords: 1
  • Other Input Voltages:110, 127
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
  • Typical recharge time: 3 hours
  • Expected Battery Life (years): 3 ~ 5
  • RBC Quantity: 1
• Communications & Management:
  • Interface Ports: SmartSlot, USB
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
  • Available SmartSlot Interface Quantity: 1
• Surge Protection and Filtering:
  • Surge energy rating: 680 Joules
  • Filtering: Full time multi-pole noise filtering; 0.3% IEEE surge let-through; zero clamping response time; meets UL 1449
• Audible noise at 1 meter from surface of unit: 45.0 dBA
• Online Thermal Dissipation: 225.0BTU/hr
• Color: Black
• Dimensions(W×D×H): 6.73 x 17.28 x 9.62 inch / 171.0 x 439.0 x 219.0 mm
• Weight: 54.23 lbs / 24.6 kg
• Approvals: CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
• RoHS Compliant
