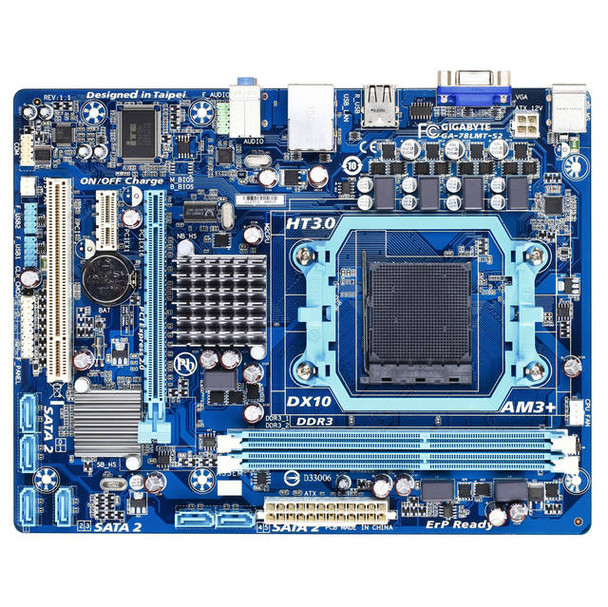

GIGABYTE GA-78LMT-S2 Socket AM3+/ AMD 760G/ DDR3/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: GA-78LMT-S2
• CPU: Socket AM3+
  • Supports AMD AM3+ Processor
  • Supports AMD AM3 Phenom II / AMD Athlon II Processor
• Chipset: North Bridge AMD 760G & South Bridge SB710
• Memory: 2x 240pin DDR3-1333+(O.C.)/1066 DIMM Sockets, Dual Channel, Max Capacity of 16GB
• Slots: 1x PCI-Express 2.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 10, JBOD
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Realtek Gigabit Ethernet Controller
• Ports: 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 4pin ATX 12V Power Connector
• Form Factor: MicroATX, 24.4 x 18.8 cm
