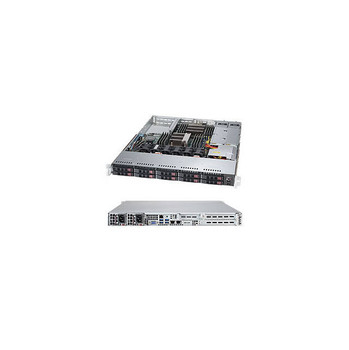

Supermicro SuperServer SYS-1028R-WTNR Dual LGA2011 700W/750W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-1028R-WTNR
• Motherboard: Super X10DRW-N
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length)
• SATA: 8x SATA3(6Gbps) Ports, Support RAID 0, 1, 5, 10; 2x NVMe/SATA3 Hybrid Ports
• Video: Aspeed AST2400 BMC Graphic
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
• Drive Bays: 10x Hot-swap 2.5" SAS/SATA HDD Bays (2x NVMe support)
• Backplane: SATA/SAS HDD Backplane
• Ports: 2x USB 3.0 Ports (via header), 4x USB 2.0 Ports (rear), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 700W/750W 80 PLUS Platinum Certified Redundant AC-DC High-efficiency Power Supply w/ PMBus and I2C
• System Cooling: 5x 4cm Heavy-duty Counter-rotating Fans w/ Air Shroud and Optimal Fan Speed Control
• Front Panel:
  • Buttons: Power On/Off, UID
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 23.5 x 1.7 inch / 437.0 x 597.0 x 43.0 mm
• Gross Weight: 46.0 lbs / 20.9 kg
• RoHS Compliant
