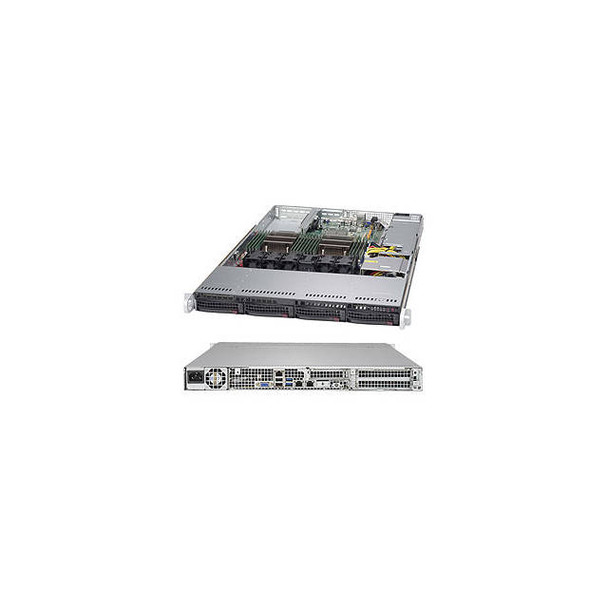

Supermicro SuperServer SYS-6018R-TDW Dual LGA2011 600W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6018R-TDW
• Motherboard: Super X10DDW-i
• Processors: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x8 Slots (Full-height, Half-length), 1x PCI-Express 3.0 Slot (Low-profile)
• SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: ASPEED AST2400 BMC Graphics
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
• Drive Bays: 4x 3.5" Hot-swap SATA HDD Trays
• Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x USB Type A Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 600W 80 PLUS Platinum Certified AC power supply w/ PFC (24-pin)
• System Cooling: 5x 4cm Heavy-duty Counter-rotating Fans w/ Air Shroud and Optimal Fan Speed Control
• Front Panel:
  • Buttons: Power On/Off, UID
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.6 x 1.7 inch / 437.0 x 650.0 x 43.0 mm
• Gross Weight: 46.0 lbs / 20.9 kg
• RoHS Compliant
