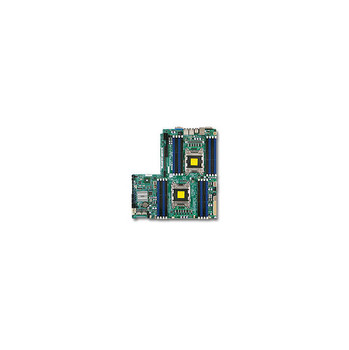

Supermicro X9DRW-IF-B Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V&2GbE/ Proprietary WIO Server Motherboard

Specifications

• Mfr Part Number: X9DRW-IF-B
• CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; QPI up to 8 GT/s
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 512GB ECC/REG Memory or 128GB ECC/Un-buffered Memory
• Slots: 1x PCI-Express3.0 x32 Slot
• SATA: 2x SATA3 Ports, 8x SATA2 Ports; Supports RAID 0, 1, 5, 10
• Video: G200 (Renesas SH7757 BMC) Graphics Controller
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 6x USB 2.0 Ports (4 rear, 2 via header); 1x VGA Port; 2x Serial Ports (1 rear, 1 via header); 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary WIO, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• RoHS Compliant
